Electric Linear Actuators 400kgs Engine Motor System Automatic Swing Gate Opener

<p>Gate move speed:12S/90degrees</p><p>Operating Temperature:-20°C~+70°C</p><p>Relative Humidity:95%, No Condensation</p><p>Protection class:IP45</p><p>Application:home automation</p>

• DC24V Electric Linear Actuator 200kgs 2meters Engine Motor System Automatic Swing Gate Opener
• 1 .Product package includes:
• 2 * leaf motors,
• 2 *remote controls,

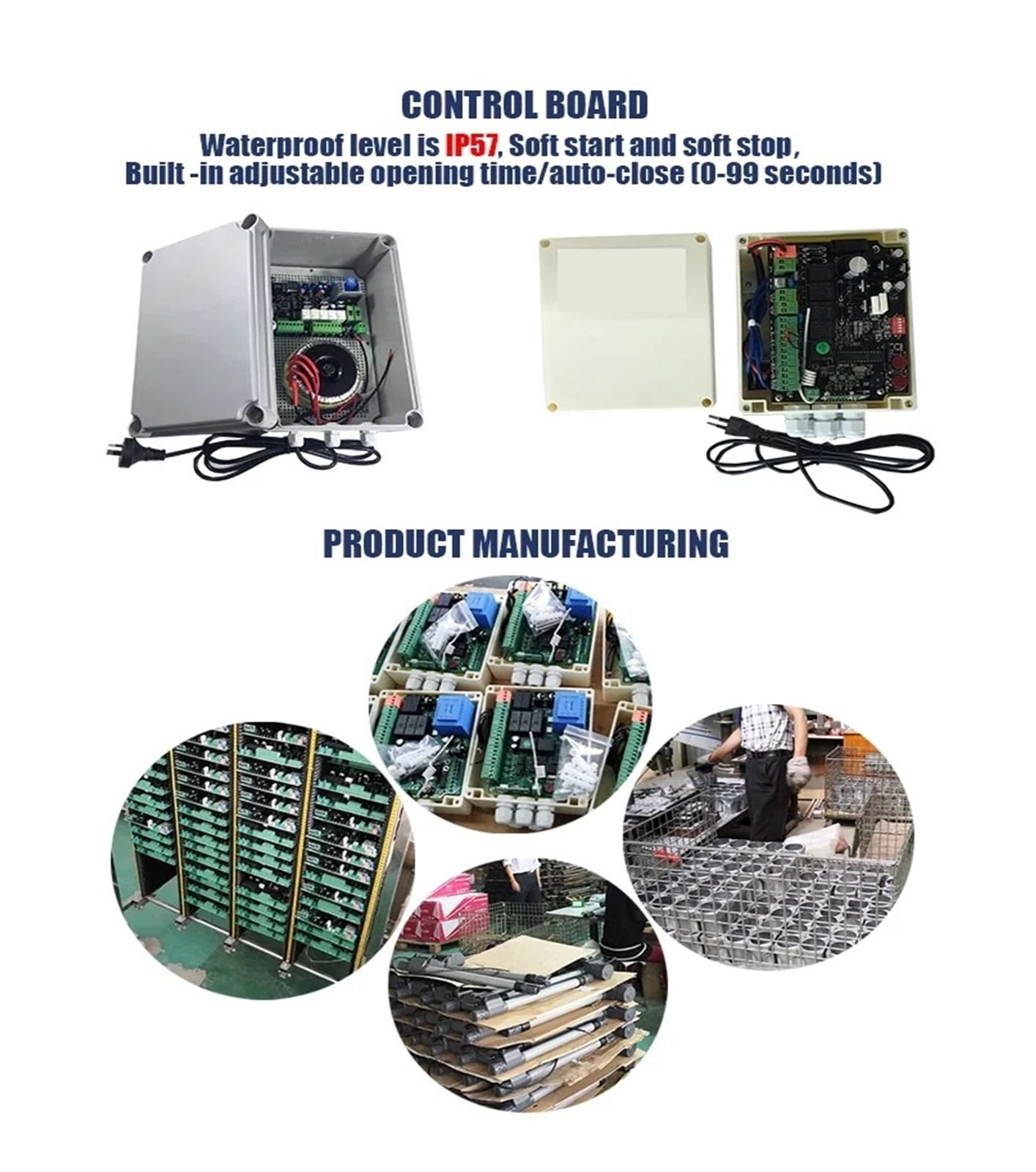

• 1*circuit board (withBack-up battery interface, solar panel&battery interfaceand mounting parts
• 1* pair of single infrared beam photocell sensor.
• Optional parts are loop detectors, alarm lights, push buttons, key pads or extra remote control available, if you want them , please contact the seller to order .
• 2.Swing Gate Opener MotorTechnical data:

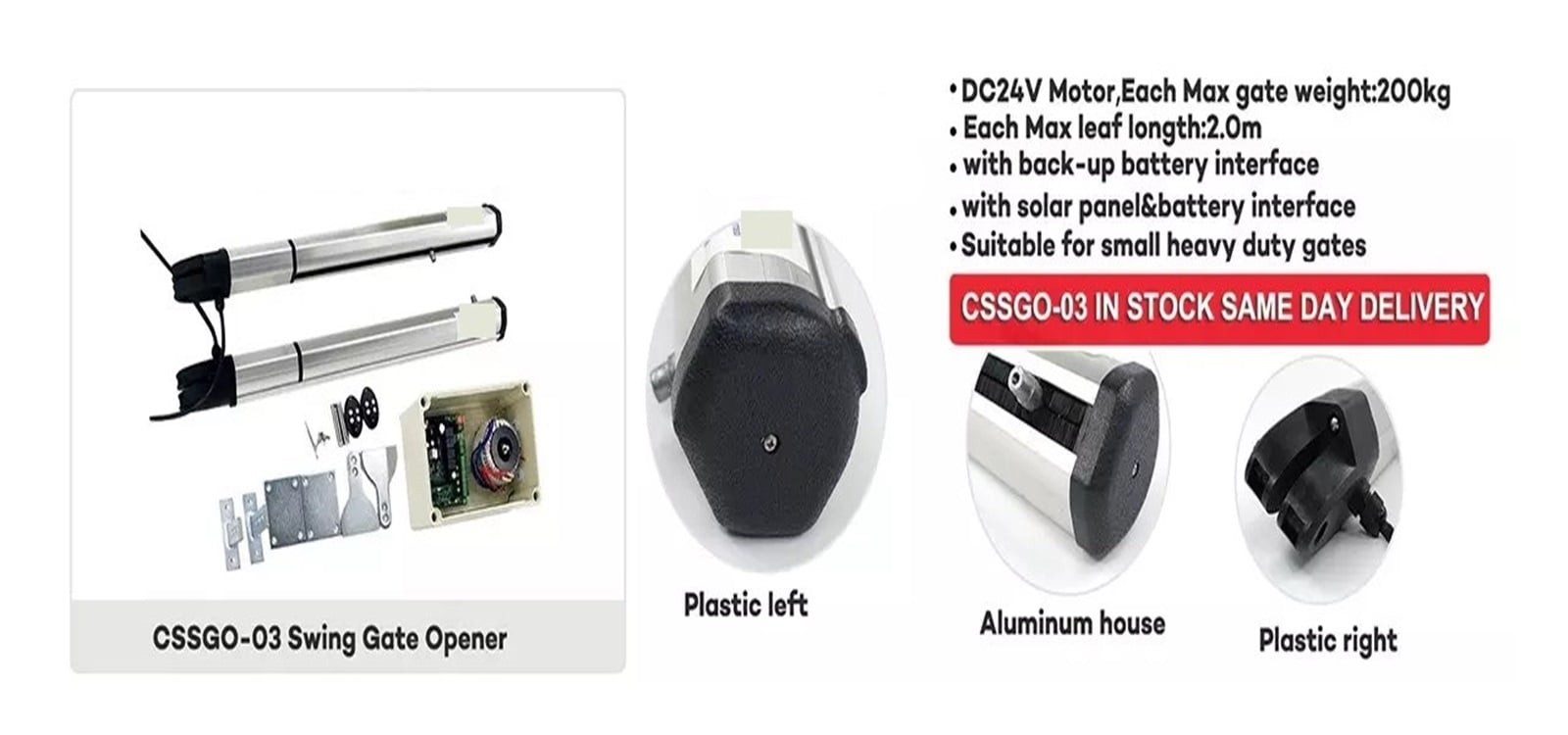

• Product Name :Liner Swing gate opener DC24V automatic gate operator
• Model:CSSGO-03-DC24V
• Power Supply:AC220V±10V 50/60HZ,AC110V±10V, 60Hz
• Electric motor:DC 24V
• Current:2A
• Absorbeb power of motor:28W
• Max each leaf length:2m, that is 2meters each one x2
• Max each gate weight:200kg, that is 200kg each per leaf x2
• Motor speed:1.6 cm/second (.63"/second)
• Rotational speed:5000RPM/min
• Thrust:350N
• Running time protection:Adjustable

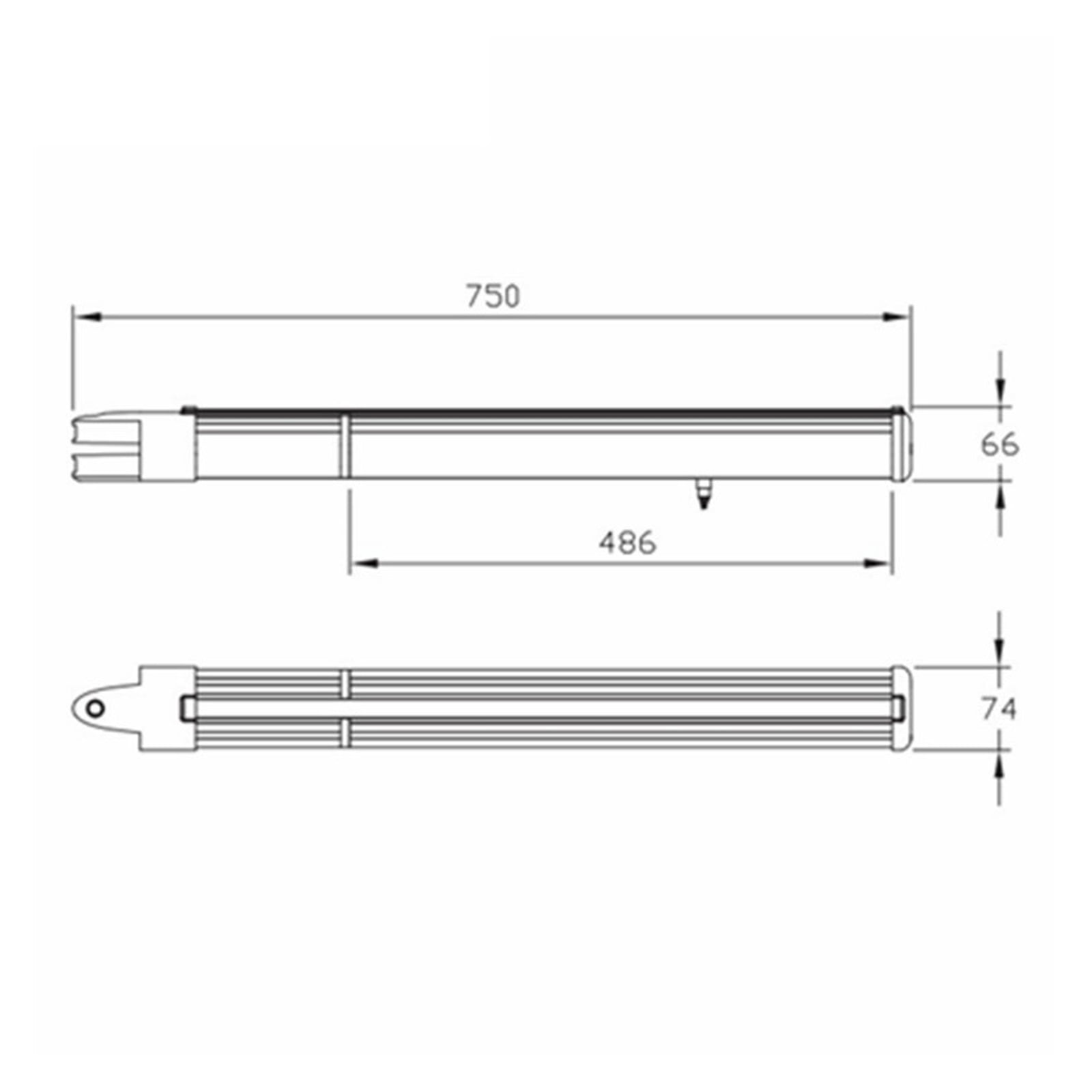

• Rod's max travel:400mm
• Auto closing delay time:programmable (from 0 to 99 seconds)
• Gate move speed:12S/90degrees
• Operating Temperature:-20°C~+70°C
• Relative Humidity:95%, No Condensation
• Protection class:IP45
• Application:home automation

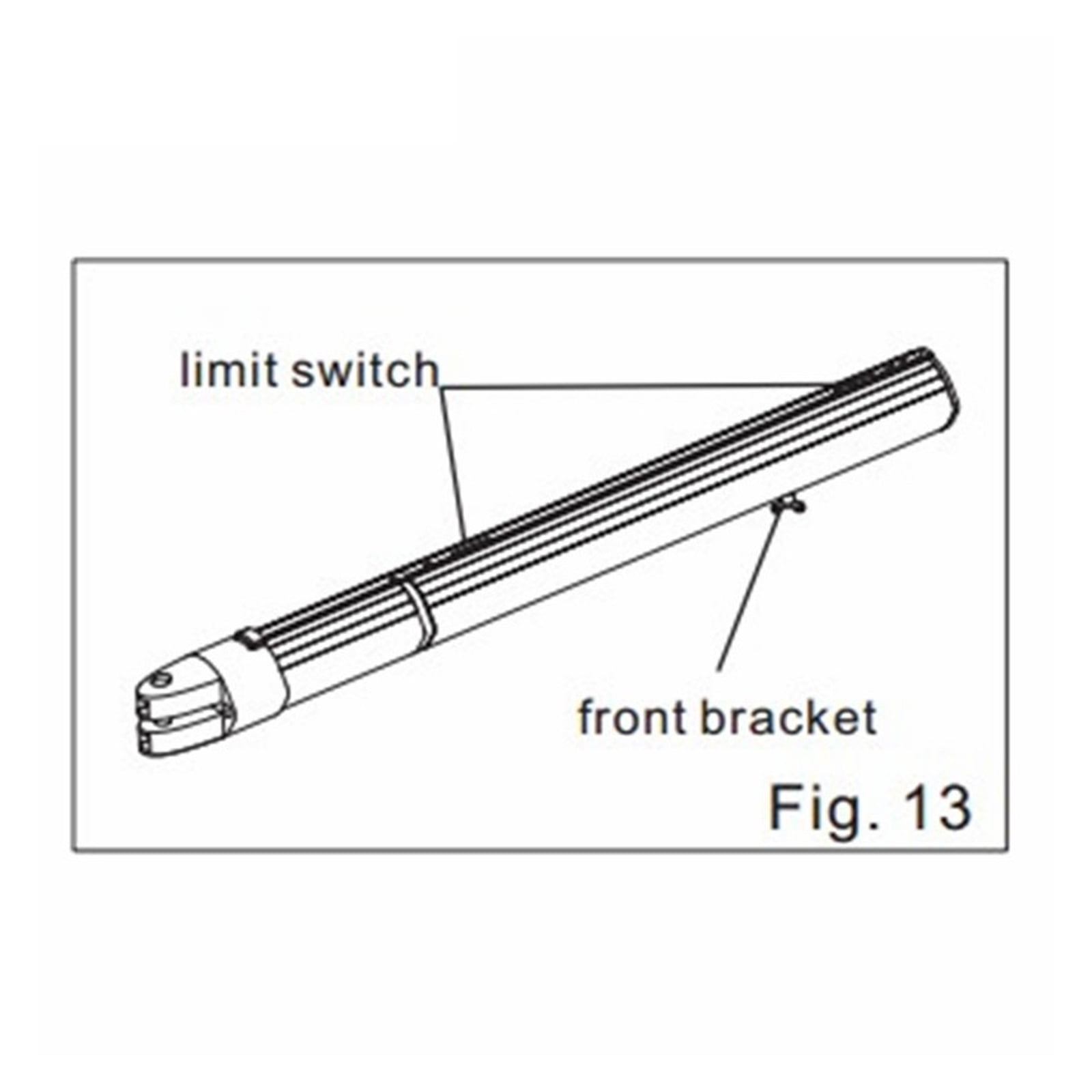

• limit switch:with limit switch
• Door opening angle:90°,100°,110°,120°
• Packing:16kg, 2 motors in one carton: 850*230*170mm, 1 control panel in one carton: 320*250*190mm, Together 2 cartons

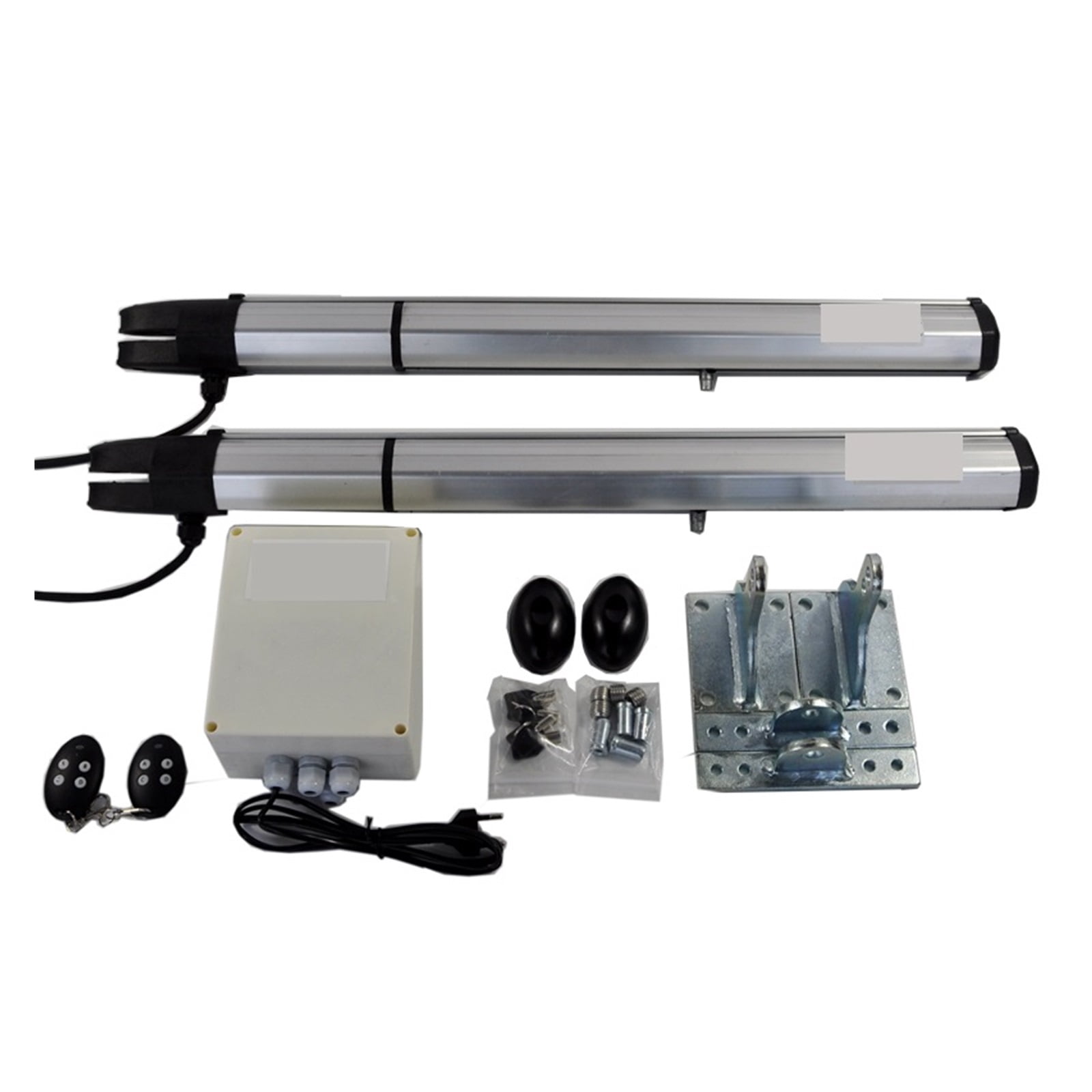

• ProductsPacking list :
• 2 motors + 1 control panel(board+box) + 2 remote control +1 transformer +others mounting brackets.
• (This model has with the limit switch, back-up battery interface, solar panel&battery interface
